Model: OF750EDCP-4K-LD
FEATURES:
• Active Matrix TFT-LCD Display
• 1344 Partition Local Dimming Backlight Enhanced
• High Brightness 3000 nits, Sunlight Viewable
• 3840 × 2160 UHD Max. Resolution
• Ultra-High Dynamic Contrast Ratio of 100,000:1
• Aspect Ratio: 9:16 (Portrait Mode)
• Wide Viewing Angles: 178° (L/R/U/D)
• Wide Operating Temp Range: -30 ～ +45 °C
• Enclosure: Waterproof IP65
• Media Player Box or SBC for Content Playback

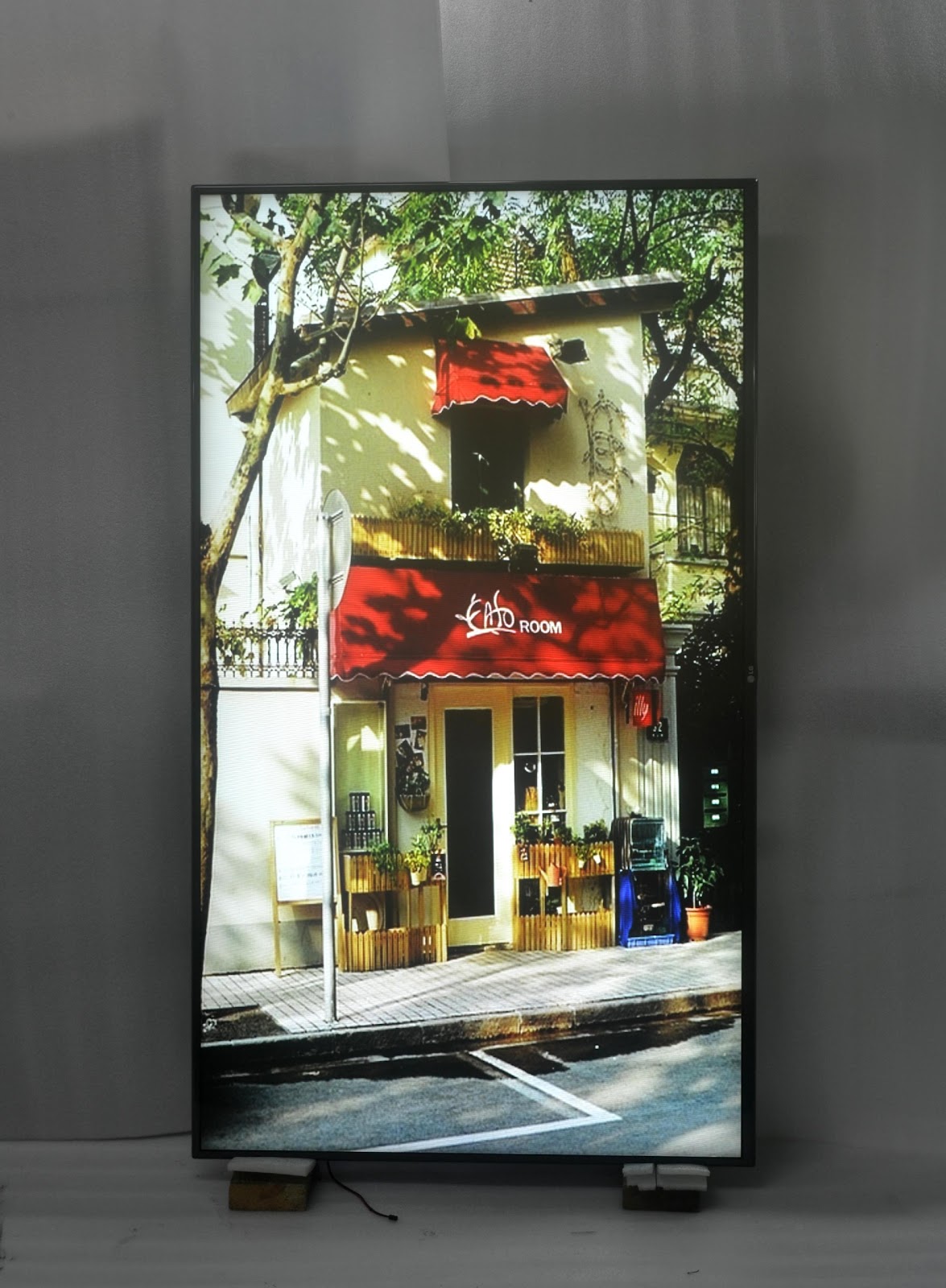

75″ High Brightness Outdoor LCD Kiosk
| Display Specifications | ||
|---|---|---|
| PANEL TYPE | a-Si active matrix TFT-LCD | |
| ACTIVE AREA | 927.936 x 1649.664 mm portrait orientation | |
| NATIVE RESOLUTION | 3840 x 2160 RGB UHD Resolution | |
| PIXEL PITCH | 0.429(H) x 0.429(V) mm | |
| COLOR | 1.07B, 10bit(D) | |
| HORIZONTAL FREQ. | 121.8KHz – 140KHz | |
| VERTICAL FREQ. | 47Hz ~ 63Hz | |
| Brightness & Image Quality | ||
| BRIGHTNESS | 3000 cd/m², 1344 Partition Local Dimming LED Array Backlight Enhanced | |
| CONTRAST RATIO | 1200:1, Dynamic: 100,000:1 | |
| DIMMING | Auto-dimming by Light Sensor | |
| VIEWING ANGLE | 89/89/89/89 | |
| RESPONSE TIME | 8msec typical | |
| Connectivity & Features | ||
| INTERFACE | HDMI x2 | |
| MEDIA PLAYER | Media Player (RK3568) option | |
| REMOTE CONTROL | Support for Full OSD Features | |
| OPERATING (OPTION) | RK3568 Quad Core, 2GB DDR3, 32GB SSD, Android 11, multiple ports | |
| Power & Accessories | ||
| OPERATING VOLTAGE | AC 100~240V 60/50Hz | |
| POWER CONSUMPTION | 720W full white, 560W average mode | |
| STANDBY MODE | 10W or less | |
| ACCESSORIES | AC Power Cord, Remote, HDMI cable x1 | |
| Physical Specifications | ||
| DIMENSION | 1678(H) x 958(W) x 80(D) mm | |
| WEIGHT | 60 Kg approx | |
| ENCLOSURE | Waterproof IP65 Enclosure option IP65 | |
| COOLING | By cooling fans controlled by MCU | |
| AIR CONDITIONER | 800W air-conditioner option option | |
| Environmental & Warranty | ||
| OPERATING TEMP | -10°C to 45°C, Wide: -30°C to 50°C option | |
| OPERATING HUMIDITY | 10% to 85% | |
| STORAGE TEMP | -30°C to 60°C | |
| STORAGE HUMIDITY | 5% to 90% | |
| WARRANTY | One year | |
