Model : T650EDCP-4K-LD
FEATURES：
• Active Matrix TFT-LCD Display
• 1152 Partition Local Dimming Backlight Enhanced
• High Brightness 2500–3000 nits, Sunlight Viewable
• 3840 × 2160 Max. QWUXGA Resolution
• Ultra-High Dynamic Contrast Ratio of 100,000:1
• Aspect Ratio: 9:16 (Portrait Orientation)
• Wide Viewing Angles: 178° (L/R/U/D)
• Wide Operating Temp Range: -30 ～ +50 °C with Air-Con
• Enclosure: Waterproof IP65
• Media Player Box or Mini PC for Content Playback

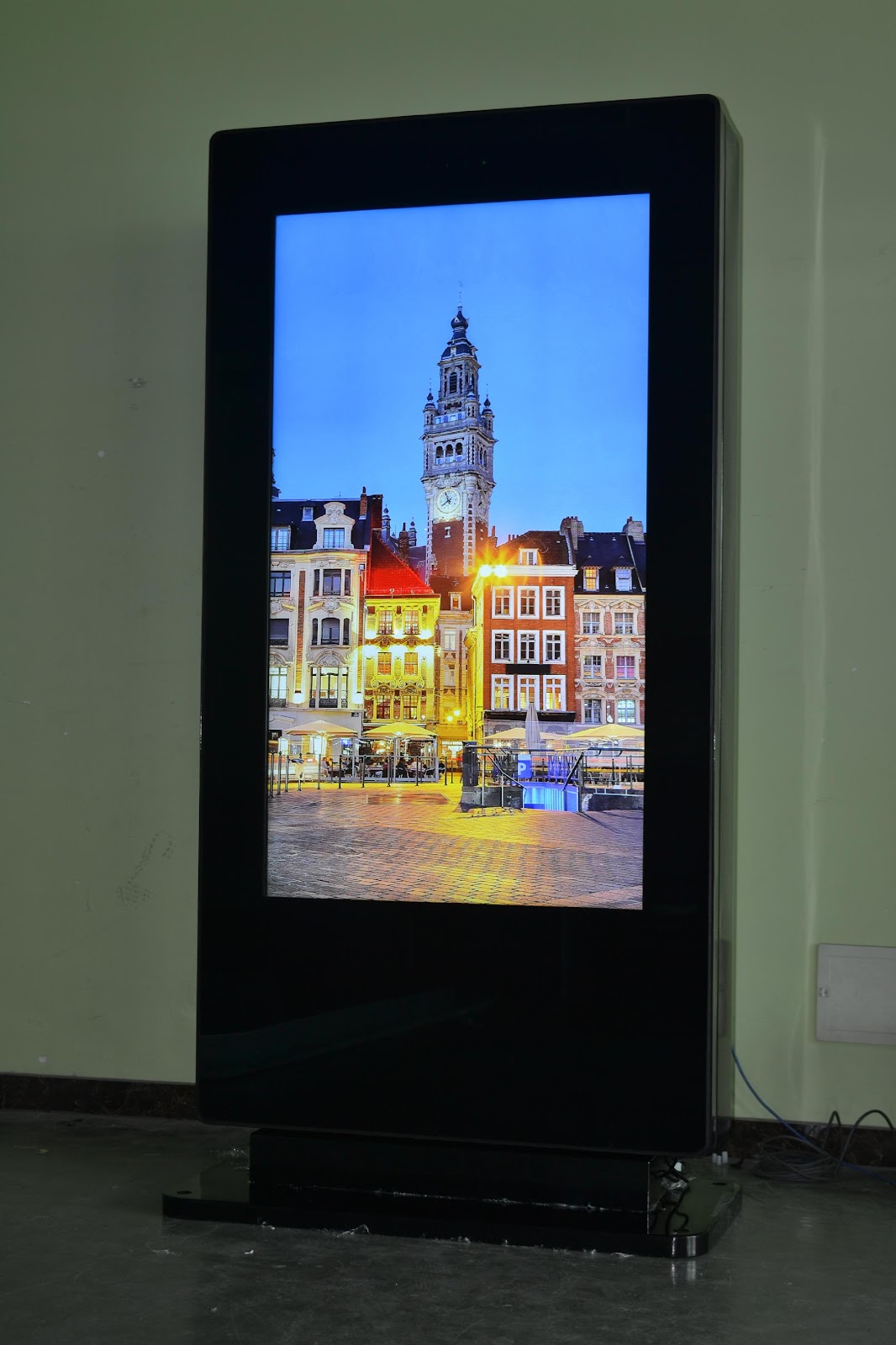

High Brightness Outdoor 65” Double sided LCD Digital Signage Totem
| Display Specifications | ||
|---|---|---|
| PANEL TYPE | a-Si active matrix TFT-LCD | |
| ACTIVE AREA | 803.52 x 1428.48 mm in portrait orientation | |
| NATIVE RESOLUTION | 2160 x 3840 RGB UHD resolution | |
| PIXEL PITCH | 0.372(H) x 0.372(V) mm | |
| COLOR | 1.07 Billion color, 10 bits | |
| HORIZONTAL FREQ. | 244KHz ~ 280KHz | |
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) | |
| Brightness & Image Quality | ||
| BRIGHTNESS | 2500-3000 cd/m², 1152 Partition Local Dimming LED Array Backlight Enhanced | |
| CONTRAST RATIO | 1400:1, Dynamic contrast ratio: 100,000:1 | |
| DIMMING | Auto-dimming by Light Sensor and Local Dimming | |
| VIEWING ANGLE | 89/89/89/89 | |
| RESPONSE TIME | 5msec typical | |
| Connectivity & Features | ||
| INTERFACE | HDMI x 2, DP option | |
| TOUCH SCREEN | 10 points Projected Capacitive Touch option | |
| MEDIA PLAYER | Android OS12 option | |
| REMOTE CONTROL | Support for Full OSD Features | |
| Power & Accessories | ||
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz | |
| POWER CONSUMPTION | 520W for 2500 nits, 600W for 3000 nits for average mode | |
| STANDBY MODE | 5 Watt or less | |
| ACCESSORIES | AC Power Cord, Remote Controller, HDMI cable x 1 | |
| OPERATING (OPTION) | Mini PC: i3-8130U CPU 2 core, 2.2GHz, 8GB DDR2 option 500G SSD, 6 x USB ports, 1 x RJ45, Wi-Fi option | |
| Physical Specifications | ||
| DIMENSION | 2200(H) x 1110(W) x 260(D) mm (without air-con) | |
| WEIGHT | 185 Kg approx (without air-con) | |
| ENCLOSURE | Waterproof IP65 Enclosure IP65 | |
| COOLING | By cooling fans controlled by intelligent MCU | |
| AIR CONDITIONER | 600W air-conditioner option for harsh outdoor option | |
| Environmental & Warranty | ||
| OPERATING TEMPERATURE | -20°C to 50°C, Wide temp. -30°C to 50°C (with cool/warm air-con) option | |
| OPERATING HUMIDITY | 10% to 85% | |
| STORAGE TEMPERATURE | -30°C to 60°C | |
| STORAGE HUMIDITY | 5% to 90% | |
| WARRANTY | One Year, extended 2 or 3 years available | |
