Model : M650EDCP-i-4K-LD
FEATURES：
• Active Matrix TFT-LCD Display
• Brightness: 2500–3000 nits, Sunlight Viewable
• Resolution: 3840 × 2160 QWUXGA Max.
• Ultra-High Dynamic Contrast Ratio of 100,000:1
• Aspect Ratio: 9:16 in Portrait Mode Enabled
• Viewing Angles: 178° (L/R/U/D)
• Operating Temperature Range: -20 ～ 45 °C
• Media Player: Box or SBC for Content Playback
• Enclosure: Waterproof IP65

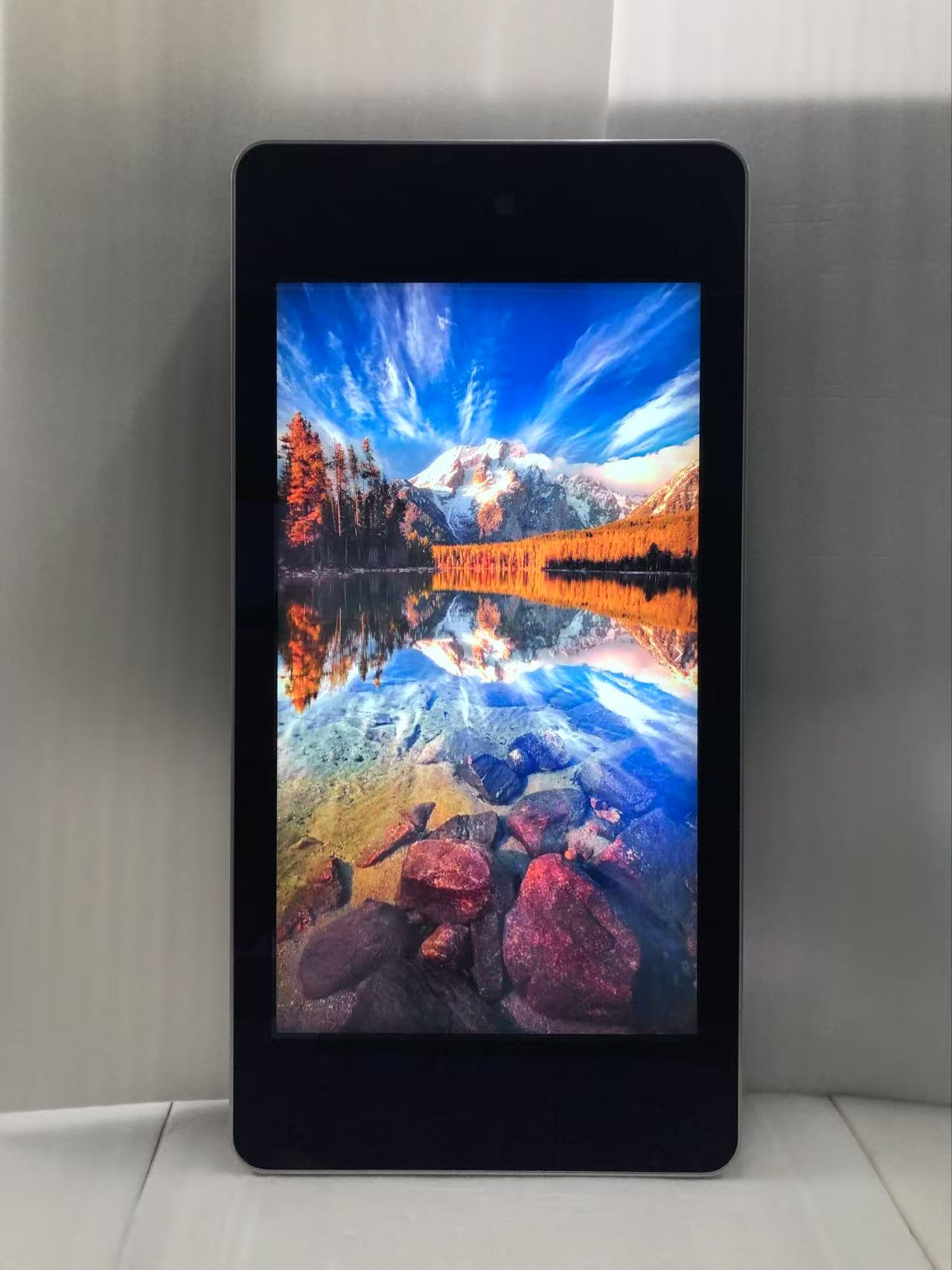

65″ High Brightness E-poster
| Display Specifications | ||
|---|---|---|
| PANEL TYPE | a-Si active matrix TFT-LCD | |
| DISPLAY SIZE | 65 inches | |
| RESOLUTION | 1920 x 1080 Full HD | |
| PIXEL PITCH | 0.75mm x 0.75mm | |
| COLOR DEPTH | 16.7 million colors | |
| Brightness & Image Quality | ||
| BRIGHTNESS | 2500-3000 cd/m², LED Array 1152 Partition Local Dimming Backlight Enhanced | |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 100,000:1 | |
| DIMMING | Auto-dimming by Light Sensor and Local Dimming | |
| VIEWING ANGLE | 89/89/89/89 | |
| RESPONSE TIME | 8ms Tr, 10ms Tf | |
| Connectivity & Features | ||
| INTERFACE | VGA, HDMI x 2 | |
| MEDIA PLAYER | Android OS12 option | |
| REMOTE CONTROL | Support for Full OSD Features | |
| Power & Accessories | ||
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz | |
| POWER CONSUMPTION | 500W at 2500 nits, 600W at 3000 nits for Average | |
| STANDBY MODE | 5 Watt or less | |
| ACCESSORIES | AC Power Cord, Remote Controller, HDMI, VGA cable x 1 | |
| OPERATING (OPTION) | Mini PC: D2550 Dual Core 1.8GHz, 4GB DDR2, 2.5″ HD, 5 x USB ports, 1 x RJ45 | |
| Physical Specifications | ||
| DIMENSION | 1910(H) x 990(W) x 140(D) mm | |
| WEIGHT | 112 Kg net weight | |
| ENCLOSURE | IP65 Waterproof Enclosure with mounting bracket IP65 | |
| COOLING | Cooling fans controlled by MCU for outdoor | |
| Environmental & Warranty | ||
| OPERATING TEMPERATURE | -10°C to 45°C, Wide temp. -30°C to 50°C option | |
| OPERATING HUMIDITY | 10% to 85% | |
| STORAGE TEMPERATURE | -30°C to 60°C | |
| STORAGE HUMIDITY | 5% to 90% | |
| WARRANTY | One Year | |
