Model : M430EDCP-i
FEATURES：
• Active Matrix TFT-LCD Display
• High Brightness 2000–2500 nits, Sunlight Viewable
• 1920 × 1080 Max. Resolution
• Aspect Ratio: 16:9 (Landscape or Portrait Mode)
• Wide Viewing Angles: 178° (L/R/U/D)
• Wide Operating Temp Range: -30 ～ +50 °C
• Waterproof IP54 Enclosure (Option)

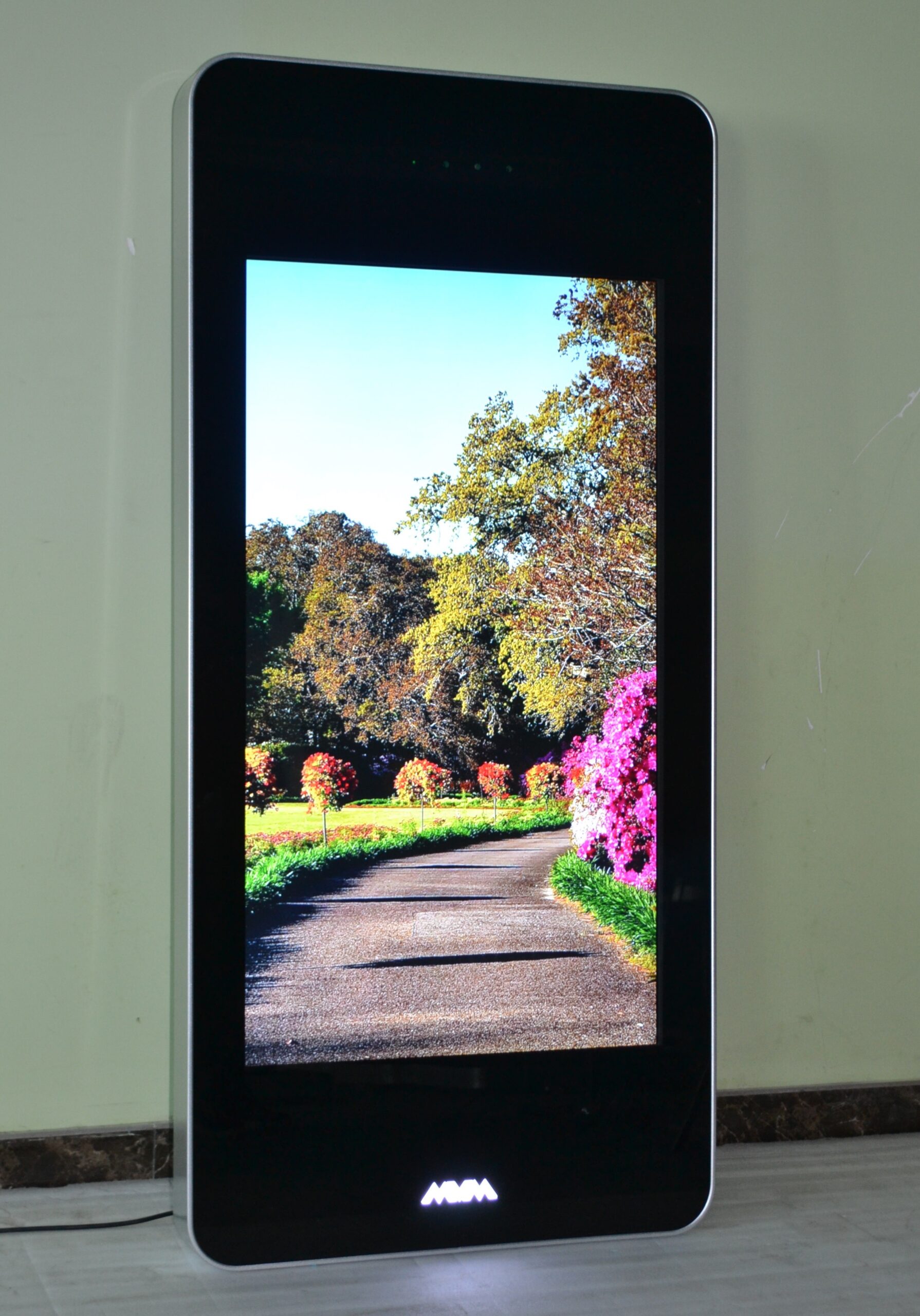

High Bright 43” E-Poster
| Panel & Display | ||
|---|---|---|
| PANEL TYPE | a-Si active matrix TFT-LCD | |
| ACTIVE AREA | 941.184(H) x 529.416(V) mm | |
| NATIVE RESOLUTION | 1920 x 1080 RGB | |
| PIXEL PITCH | 0.4902(H) x 0.4902(V) mm | |
| COLOR | 16.7 M, 8 bits depth | |
| BRIGHTNESS | 2000-2500 cd/m², LED Backlight Enhanced | |
| CONTRAST RATIO | 1100:1, Dynamic 9000:1 | |
| DIMMING | Auto-dimming by Light Sensor | |
| VIEWING ANGLE | 89/89/89/89 | |
| RESPONSE TIME | 12 ms typical | |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz | |
| VERTICAL FREQ. | 47Hz ~ 63Hz (DVB/PAL), 108Hz ~ 122Hz (NTSC) | |
| Connectivity & Features | ||
| INTERFACE | VGA, HDMI x 2 | |
| MEDIA PLAYER | Android OS12 option | |
| REMOTE CONTROL | Support for Full OSD Features | |
| Power & Physical Specs | ||
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz | |
| POWER CONSUMPTION | 265W at 2000 nits, 330W at 2500 nits | |
| STANDBY MODE | 5 Watt or less | |
| ACCESSORIES | AC Power Cord, Remote Controller, HDMI & VGA cable x1 | |
| OPERATING (option) | RK3288 Quad-core Cortex-A17 1.8GHz, 2GB DDR3, 32-64GB SD, 4 x USB, 1 x RJ45, 1 x HDMI, 2 x RS232, Android OS 7.1 | |
| TOUCH SCREEN | 10 points PCAP Touch option | |
| DIMENSION | 1410(H) x 670(W) x 140(D) mm | |
| WEIGHT | 65 Kg net weight | |
| Enclosure & Construction | ||
| ENCLOSURE | Waterproof IP54 Enclosure with mounting bracket IP54 | |
| CONSTRUCTION | Alu Frame, Iron Sheet Folded back cover | |
| COOLING | Fans cooling controlled by MCU | |
| Environmental & Warranty | ||
| OPERATING TEMP | -10°C ~ 50°C, Wide temp. -30°C ~ 50°C option | |
| OPERATING HUMIDITY | 10% ~ 85% | |
| STORAGE TEMP | -30°C ~ 60°C | |
| STORAGE HUMIDITY | 5% ~ 90% | |
| WARRANTY | One Year | |
