Model: M154EECL-R
FEATURES：
• Active Matrix TFT-LCD
• Resolution: 1280 × 800 Max.
• Aspect Ratio: 16:10
• High Brightness: 900 nits, Solid-State LED Backlight
• Optical Bonding Front Overlay, Sunlight Viewable
• Viewing Angles: 160° (L/R)
• Touchscreen: 5-Wire Resistive
• Operating Temp Range: -30 ～ 65 °C
• Enclosure: All-Weather Proof, Fully Sealed, IP66

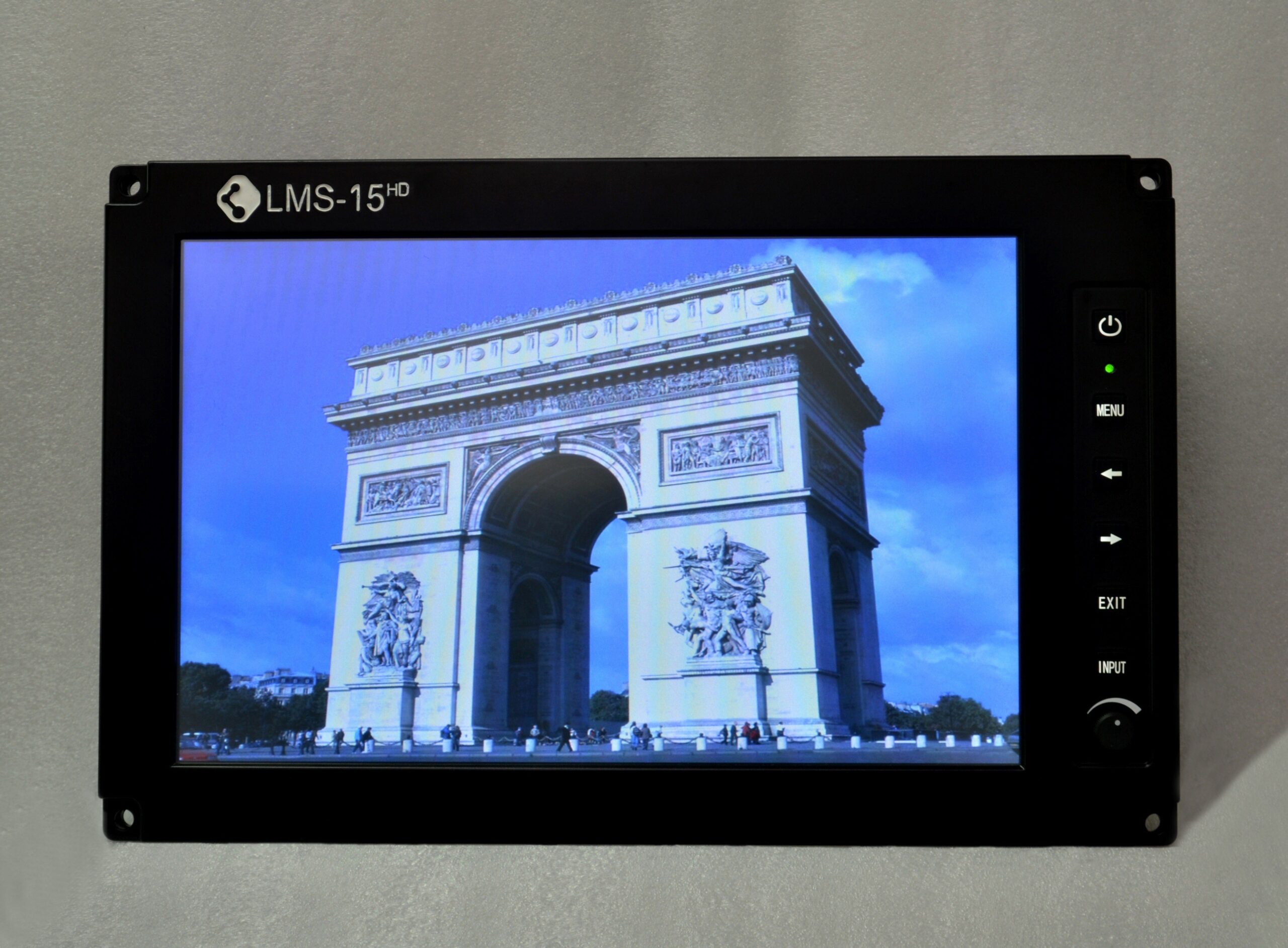

15.4″ High Bright Rugged Monitor
| Display Specifications | ||
|---|---|---|
| PANEL TYPE | a-Si active matrix TFT-LCD | |
| ACTIVE AREA | 331.2 x 207.0 mm | |
| NATIVE RESOLUTION | 1280 x 800 RGB VGA to WXGA resolution | |
| PIXEL PITCH | 0.259(H) x 0.259(V) mm | |
| COLOR | 6 bits 262.144 colors | |
| BACKLIGHT TYPE | Solid State LED Edge type | |
| ASPECT RATIO | 16:10 | |
| Brightness & Image Quality | ||
| BRIGHTNESS | 900 cd/m², after touchscreen bonding | |
| CONTRAST RATIO | 700:1, Dynamic contrast ratio up to 10000:1 | |
| DIMMING | 100:1 manual dimming by POT | |
| VIEWING ANGLE | 80/80/70/70 (Wide Viewing Angles 160 deg) | |
| RESPONSE TIME | 5ms tr, 11ms tf | |
| LIFETIME | >45000 hrs | |
| Connectivity & Features | ||
| INTERFACE | VGA, DVI and HD-SDI by toggle Input button | |
| TOUCHSCREEN | 5-Wire Resistive Touchscreen | |
| OPTICAL BONDING | Optical Bonding front overlay, Sunlight Viewable | |
| Power & Operation | ||
| OPERATING VOLTAGE | 9-36VDC Wide Input Voltage Range | |
| POWER CONSUMPTION | 36Watt at 900 nits highest brightness level | |
| STANDBY MODE | 3 Watt or less | |
| ACCESSORIES | AC Power Cord, VGA, DVI and SDI cables | |
| VOLTAGE PROTECTION | Reverse Voltage Input Protection option | |
| Physical Specifications | ||
| DIMENSION | 423(H) x 270(W) x 63(D) mm | |
| WEIGHT | 8Kg approx. | |
| ENCLOSURE | Aluminum milled fully sealed IP66 IP66 | |
| MOUNTING | Panel mount or VESA mount | |
| Durability & Environmental | ||
| SHOCK RESISTANCE | 60G half sine wave Z direction 6ms, 30G half sine wave X/Y direction 11ms | |
| VIBRATION RESISTANCE | 2.5G 5-200HZ X,Y,Z directions 11min | |
| EMI COMPATIBILITY | EMI Coating glass on front glass, CE102 10KHz – 10MHz, RE102 10KHz – 1GHz | |
| OPERATING TEMPERATURE | -30°C to 65°C | |
| OPERATING HUMIDITY | 5% to 100% | |
| STORAGE TEMPERATURE | -40°C to 70°C | |
| STORAGE HUMIDITY | 5% to 95% | |
| Warranty | ||
| WARRANTY | One Year Warranty | |
