Model : T650EDCP-DF-LD
FEATURES:
• Active Matrix TFT-LCD Display
• 1344-Zone Local Dimming Backlight Enhanced
• High Brightness 3000 nits, Sunlight Viewable
• QWUXGA 3840 × 2160 Max. Resolution
• Aspect Ratio: 9:16 (Portrait Mode Enabled)
• Ultra-High Dynamic Contrast Ratio of 100,000:1
• Wide Viewing Angles: 178° (L/R/U/D)
• Wide Operating Temp Range: -30 ～ +45 °C
• Enclosure: Waterproof IP65
• Media Player Box or Mini PC for Content Playback

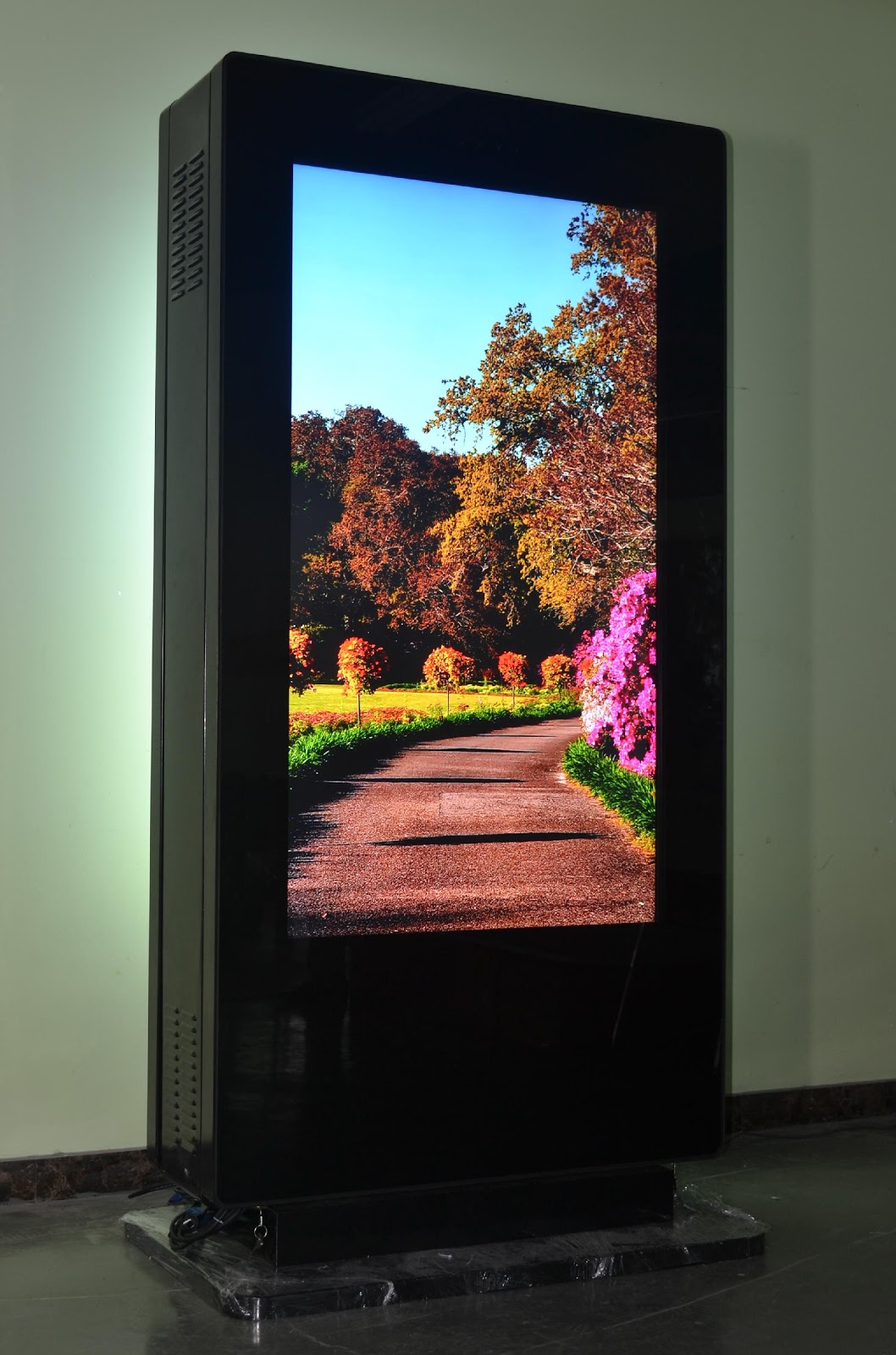

High Brightness Outdoor 75” Double sided LCD Digital Signage Totem
| Display Specifications | ||
|---|---|---|
| PANEL TYPE | a-Si active matrix TFT-LCD | |
| ACTIVE AREA | 1649.664 x 927.936 mm, portrait orientation | |
| NATIVE RESOLUTION | 2160 x 3840 RGB QWUXGA Resolution | |
| PIXEL PITCH | 0.429(H) x 0.429(V) mm | |
| COLOR | 1.07 Billion, 10 bits | |
| HORIZONTAL FREQ. | 110KHz ~ 139.5KHz | |
| VERTICAL FREQ. | 47Hz ~ 63Hz | |
| Brightness & Image Quality | ||
| BRIGHTNESS | 3000 cd/m², 1344 Partition Local Dimming LED Array Backlight Enhanced | |
| CONTRAST RATIO | 1200:1, Ultra-High Dynamic Contrast Ratio of 100,000:1 | |
| DIMMING | Auto-dimming by Light Sensor and Local Dimming | |
| VIEWING ANGLE | 89/89/89/89 | |
| RESPONSE TIME | 8msec typical | |
| Connectivity & Features | ||
| INTERFACE | HDMI x2 | |
| TOUCH SCREEN | 10 Points Projected Capacitive Touch option | |
| MEDIA PLAYER | Android OS12 option | |
| REMOTE CONTROL | Support for Full OSD Features | |
| Power & Accessories | ||
| OPERATING VOLTAGE | AC 100~240V 60/50Hz | |
| POWER CONSUMPTION | 1500W for two panels w/o air-con | |
| STANDBY MODE | 10 Watt or less | |
| ACCESSORIES | AC Power Cord, Remote Controller, HDMI cable x1 | |
| OPERATING (OPTION) | Media Player RK3568 Quad Core Cortex-A55 2.0GHz, 2GB DDR3, 32GB SSD, 6 x USB, 1 x RJ45, 1 x HDMI, 1 x eDP, 2 x RS232, Android OS 11 | |
| Physical Specifications | ||
| DIMENSION | 2330(H) x 1260(W) x 320(D) mm (without air-con) | |
| WEIGHT | 295 Kg approx (without air-con) | |
| ENCLOSURE | Waterproof IP65 IP65 | |
| COOLING | By cooling fans controlled by MCU for outdoor | |
| AIR CONDITIONER | 1500W Industrial air-conditioner for harsh outdoor option | |
| Environmental & Warranty | ||
| OPERATING TEMPERATURE | -20°C to 45°C, Wide temp. -30°C to 50°C option | |
| OPERATING HUMIDITY | 10% to 85% | |
| STORAGE TEMPERATURE | -30°C to 60°C | |
| STORAGE HUMIDITY | 5% to 90% | |
| WARRANTY | One Year | |
