Model: OF121EECL
FEATURES:
• Active Matrix TFT-LCD
• Brightness: 1500 nits, Sunlight Viewable
• Backlight: Edge-Type LED Backlight Enhanced
• Resolution: 1024 × 768 Max.
• Aspect Ratio: 4:3
• Viewing Angles: 160° (L/R)
• Operating Temperature Range: -30 ～ 70 °C

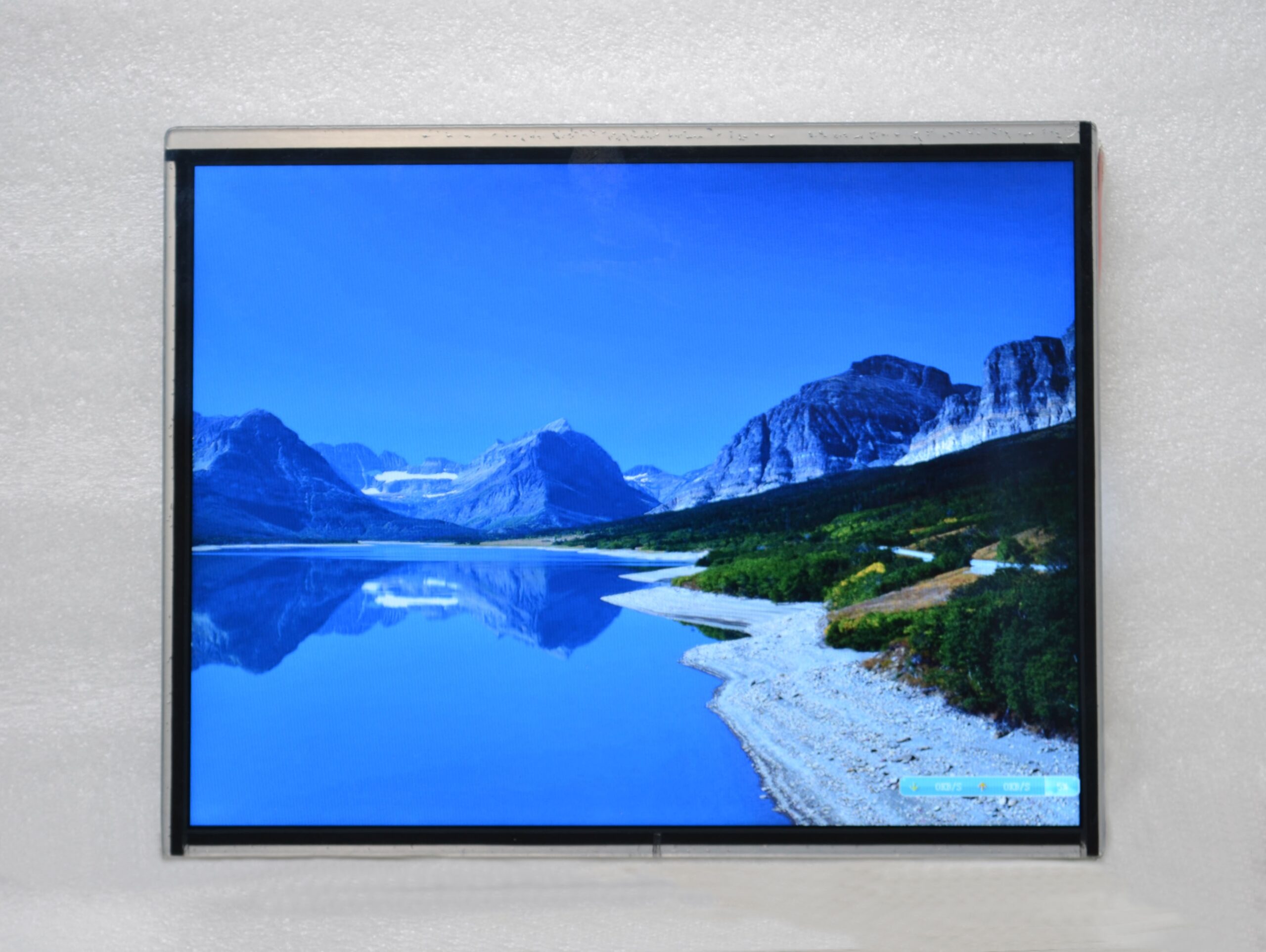

12.1″ High Bright Rugged Module
| Display Specifications | ||
|---|---|---|
| PANEL TYPE | a-Si active matrix TFT-LCD | |
| ACTIVE AREA | 245.76 x 184.32 mm | |
| NATIVE RESOLUTION | 1024 x 768 RGB VGA to XGA resolution | |
| PIXEL PITCH | 0.240(H) x 0.240(V) mm | |
| COLOR | 6 bits 262.144K | |
| BACKLIGHT TYPE | LED Edge type | |
| ASPECT RATIO | 4:3 | |
| Brightness & Image Quality | ||
| BRIGHTNESS | 1500 cd/m², LED Backlight Enhanced | |
| CONTRAST RATIO | 700:1, Dynamic contrast ratio up to 10000:1 | |
| DIMMING | 100:1 auto dimming by Light Sensor or manually by + / – button or POT | |
| VIEWING ANGLE | 80/80/80/80 (Wide Viewing Angles 160 deg) | |
| RESPONSE TIME | 6ms tr, 17ms tf | |
| LIFETIME | >45000 hrs | |
| Connectivity & Features | ||
| INTERFACE | VGA and composite video | |
| ACCESSORIES | VGA cable and AV cable option | |
| POWER SUPPLY | Power Adapter with Cord option | |
| Power & Operation | ||
| OPERATING VOLTAGE | 12VDC, 2.5A | |
| POWER CONSUMPTION | 18Watt at 1500 nits bright level | |
| STANDBY MODE | 1-2 Watt or less | |
| OPERATING VOLTAGE | 12VDC Input Voltage | |
| Physical Specifications | ||
| DIMENSION | 260.5(H) x 204(V) x 14(D) mm for panel | |
| WEIGHT | 0.85 Kg approx. | |
| ENCLOSURE | Aluminum milled fully sealed IP65 IP65 option | |
| Durability & Environmental | ||
| SHOCK RESISTANCE | 50G half sine wave 1 time for X, Y, Z direction | |
| VIBRATION RESISTANCE | 1.5G 10-500HZ X,Y,Z directions 1.5mm | |
| OPERATING TEMPERATURE | -30°C to 70°C, Wide temp. -35°C to 70°C with internal heater option | |
| OPERATING HUMIDITY | 10% to 85% | |
| STORAGE TEMPERATURE | -40°C to 80°C | |
| STORAGE HUMIDITY | 5% to 90% | |
| Warranty | ||
| WARRANTY | One Year Warranty | |
