Model: OF065EECL-BD
FEATURES:
• Bright Active Matrix TFT-LCD Display
• Max Resolution: 640 x 480
• Interface: Digital or Analog
• Wide Viewing Angles: 160 degrees (L/R)
• Sunlight Viewability: Completely sunlight viewable with optical bonding
• Aspect Ratio: 4:3

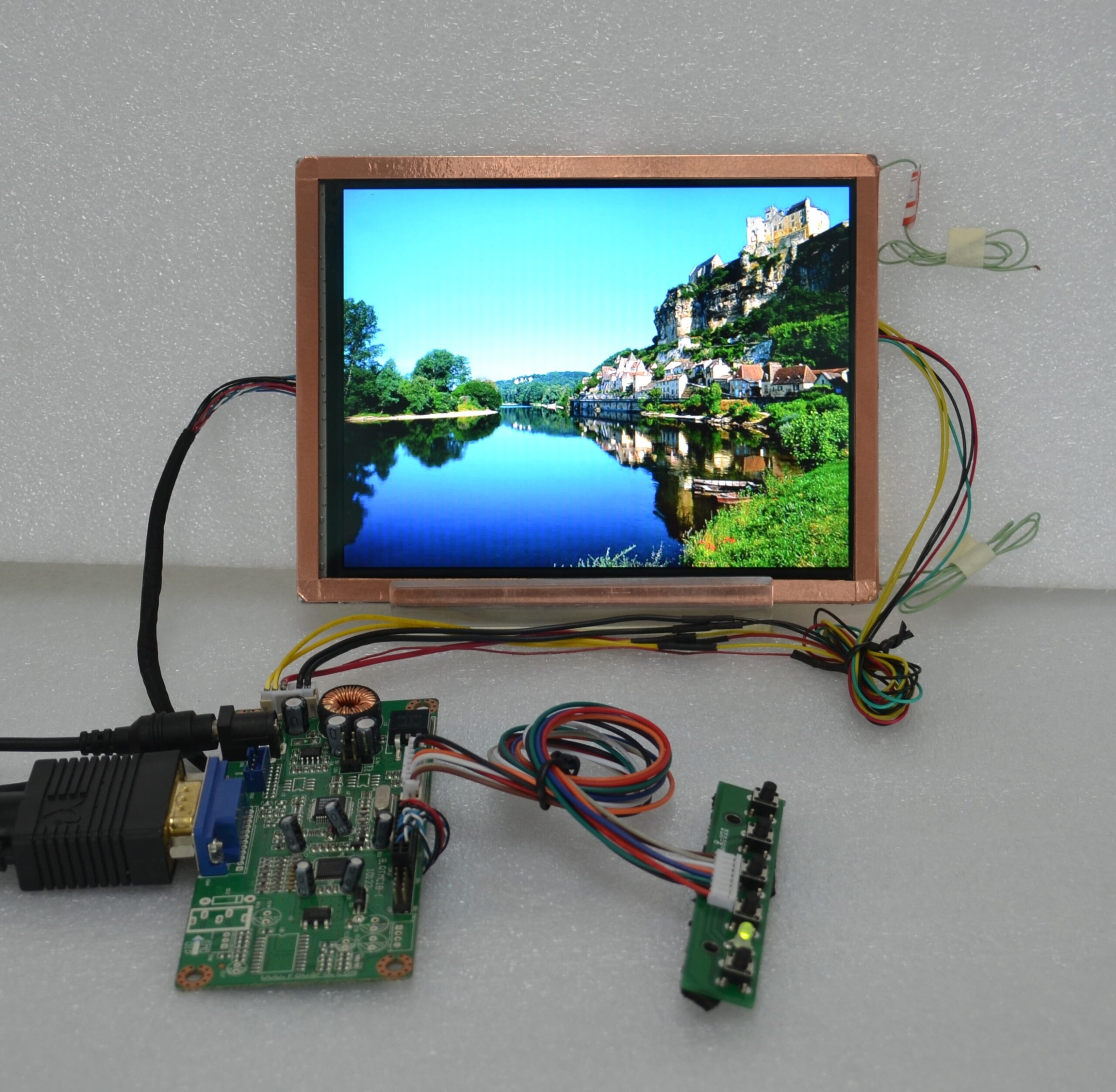

6.5″ EMI Sealed Optical Bonding High Bright LCD Module
| Display Specifications | ||
|---|---|---|
| PANEL TYPE | TFT Active Matrix | |
| ACTIVE AREA | 132.48 (H) x 99.36 (V) mm | |
| MAX RESOLUTION | 640 x 480, VGA | |
| PIXEL PITCH | 0.207mm (H) x 0.207mm (V) | |
| COLORS SUPPORTED | 6 bit 262K / 8 bit 16.2M | |
| BACKLIGHT TYPE | LED high bright edge type | |
| ASPECT RATIO | 4:3 | |
| Brightness & Image Quality | ||
| BRIGHTNESS | 1000 nits after bonding, Sunlight Viewable | |
| CONTRAST RATIO | 600:1 Typical | |
| DIMMING | 1000 nits to 1 nits dimming for daytime/at night | |
| VIEWING ANGLE | Left/Right: 80°/80°, Up/Down: 70°/70° (Wide Viewing Angles 160 deg) | |
| RESPONSE TIME | 15ms tr, 10ms tf | |
| BACKLIGHT LIFETIME | 50,000 Hours Typical | |
| Connectivity & Features | ||
| INTERFACE | VGA and Composite Video | |
| ELECTRICAL INTERFACE | CMOS 6 bit Digital RGB | |
| Power & Operation | ||
| POWER SOURCE | 12 VDC, 9-36VDC input option | |
| POWER CONSUMPTION | 12 Watt (9.6Watt for BLU + Panel, 2.5Watt A/D board) | |
| SLEEP MODE | 1 Watt | |
| OSD KEY FUNCTION | Menu, -, +, Auto/Sel, On/Off | |
| POWER INPUT | 12VDC/1.5A | |
| Physical Specifications | ||
| PHYSICAL SIZE | 153.0(H) x 118.0(V) x 10.9(D) mm | |
| WEIGHT | N/A | |
| ENCLOSURE | Alu block milled front, alu sheet folded backcover IP65 Option | |
| Durability & Environmental | ||
| OPERATING TEMPERATURE | -30°C to 85°C | |
| STORAGE TEMPERATURE | -30°C to 85°C | |
| OPERATING HUMIDITY | 5 to 95% NC | |
| STORAGE HUMIDITY | 5 to 95% NC | |
| Optical Bonding Options | ||
| OPTICAL BONDING | With AR glass + ITO Coating option | |
| ITO RESISTANCE | 9.6 ohm | |
| TRANSPARENCY | >90% | |
| GLASS THICKNESS | 2.7mm (AR+ITO glass) | |
| BONDING THICKNESS | 0.7-0.9mm (optical bonding) | |
| ITO SHIELD | Copper type around edge of glass for grounding | |
